16.14 Node Text/Comments

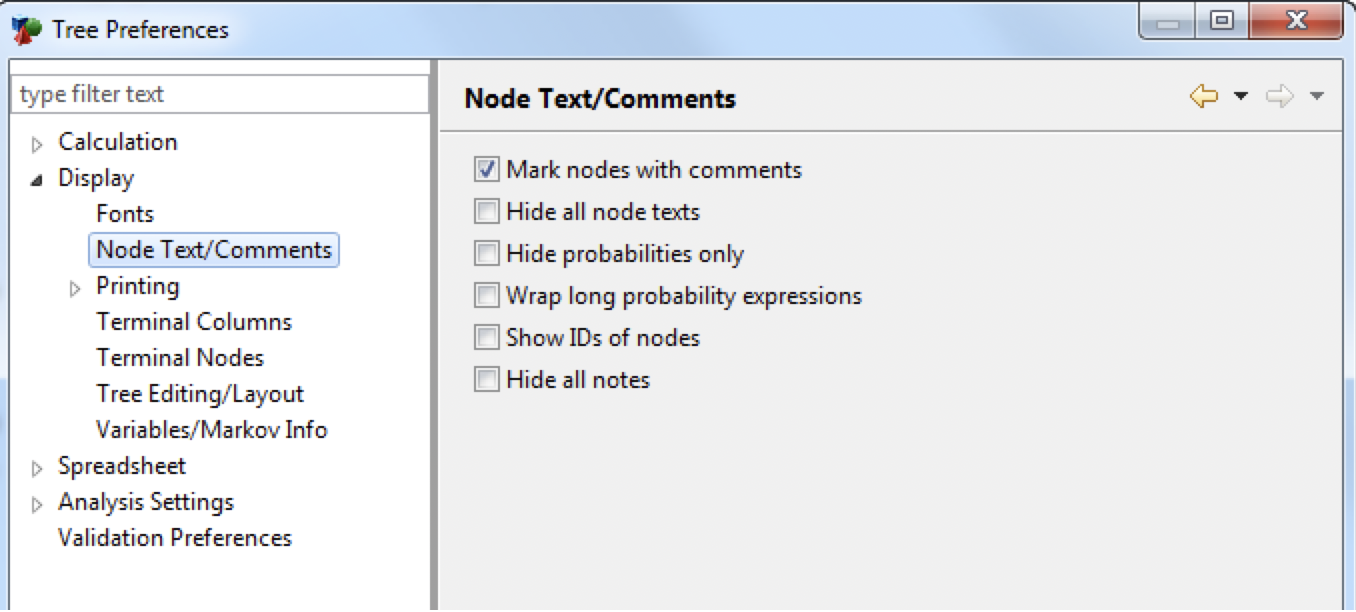

The Node Text/Comments Tree Preferences category allows you to show/hide certain text labels/values within the model.

  • Mark nodes with comments: Check this box to display a small flag above the node symbol for all nodes with associated Node Comments. This flag does not print or export.

  • Hide all node texts: Check this box to suppress all textual information in the Tree Diagram Editor. Use this flag to get a picture of the structure of your tree.

  • Hide probabilities only: Check this box to hide only probabilities expressions in the Tree Diagram Editor, while all other textual information is visible. Use this flag to temporarily simplify the display of complex trees with many uncertainties.

  • Wrap long probability expressions: Check this box to wrap probability expressions that may exceed the width of a node.

  • Show IDs of nodes: Show node IDs next to the node labels in the Tree Diagram Editor and Tree Explorer.

  • Hide all notes: Check this box to hide/show all the notes in the Tree Diagram Editor.

16.14.1  Node ID Report

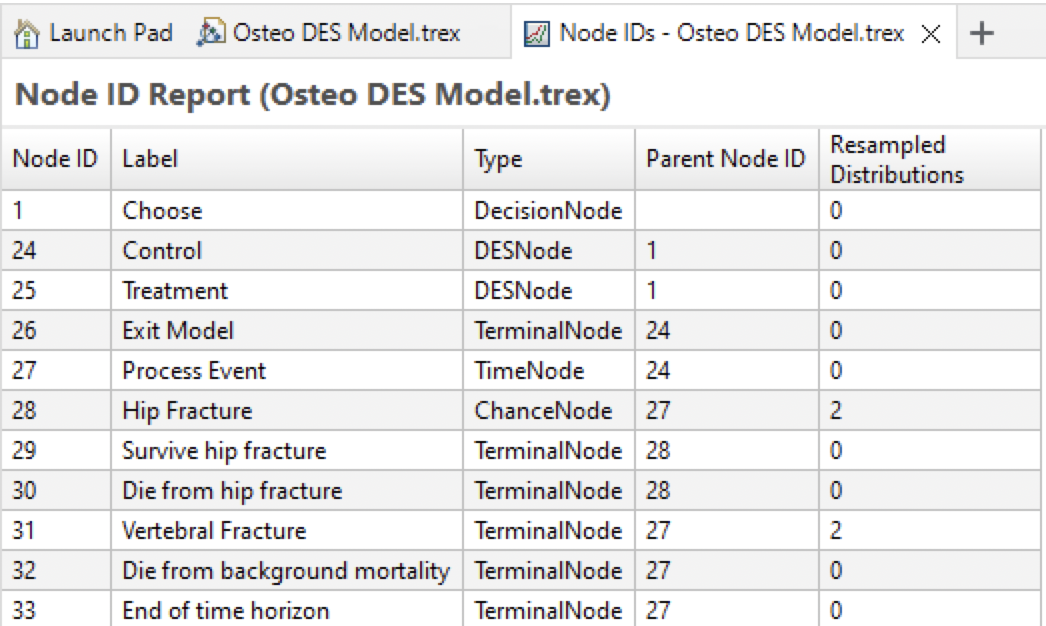

In addition to the option to "Show IDs of nodes", you can create a Node ID Report outside of the Tree Preferences. In your model, go to the menus and choose Node > Node ID Report from the menu. The Node ID Report is displayed below.
